Quick answer
Smoke coming from a furnace has five usual sources: a blower motor burning out, an electrical short, heavy dust or oil cooking off the heat exchanger, a soot puff from delayed ignition, or flue gases spilling from a blocked vent. Switch the furnace off, close its gas valve, get everyone out, and call 911 if smoke continues or you see flame. Do not restart it until it has been inspected.
Smoke coming from your furnace means something is burning that should not be, or combustion gases are leaving by the wrong route. Either way the furnace is finished for the day. Deal with the house first, the diagnosis second: the steps below take about two minutes, and none of them involve opening the cabinet.
What to do in the first two minutes
- If you see flame, or the smoke is thick enough to make you cough, skip everything below: get everyone out and call 911 from outside.
- Otherwise, turn the furnace off at the switch on the wall or joist beside it. It looks like a light switch, often with a red plate.
- Close the appliance gas valve on the pipe feeding the furnace: a quarter turn, until the handle sits crosswise to the pipe. The details are in how to shut off the gas to a furnace.
- Get people and pets outside or to a neighbour's, and leave the basement door closed behind you.

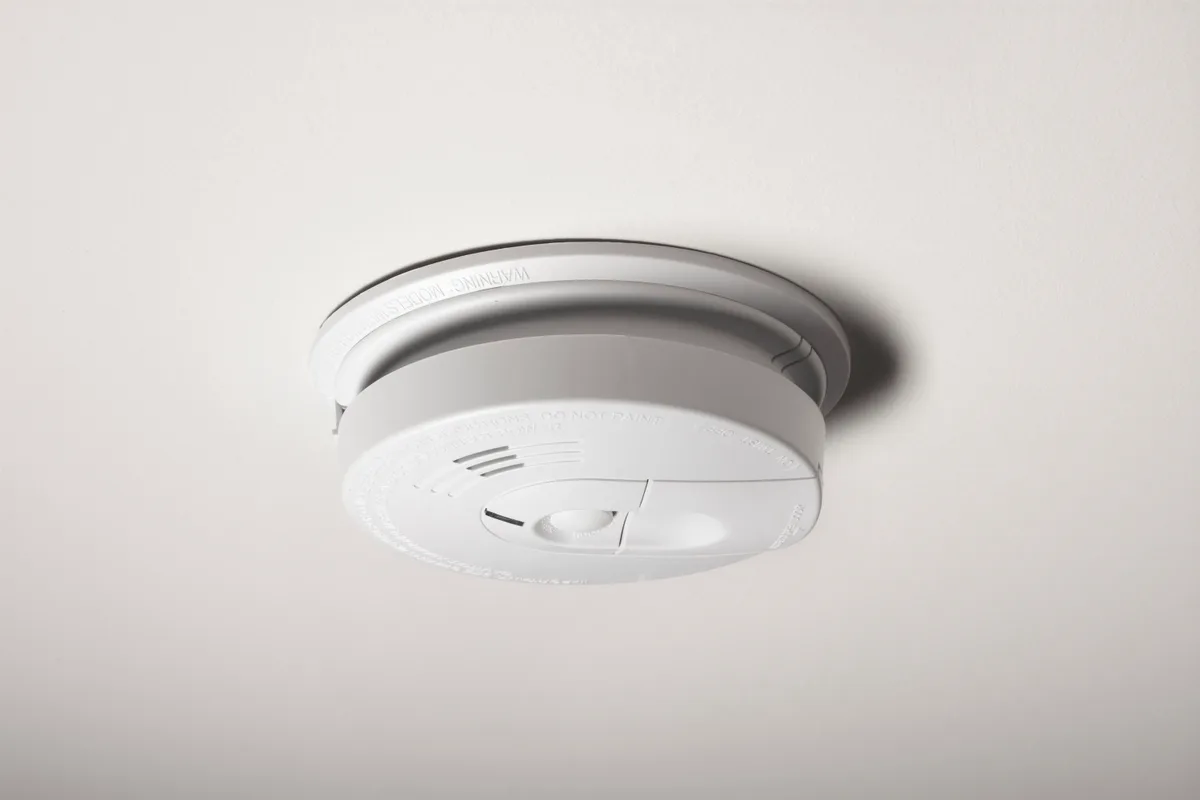

- Call 911 if smoke keeps coming after the power is off, if a smoke or carbon monoxide alarm is sounding, or if anyone feels dizzy or nauseous.
- Leave the furnace off. Do not restart it to see whether it happens again.
Five places furnace smoke comes from
- A blower motor burning out. Seized bearings stall the motor, the windings overheat and grey, acrid smoke comes out of the blower compartment and sometimes the registers. It usually follows days of humming or squealing.
- An electrical short. A wire rubbed through on sheet metal, a failed transformer or a burnt relay on the control board gives a thin, sharp-smelling smoke and often trips the breaker or blows the board fuse.
- Dust or oil on the heat exchanger. A furnace that sat all summer burns off dust as a faint haze at the registers; a brand-new furnace burns off the protective oil on its heat exchanger during the first few hours. Both clear quickly and neither produces dark smoke.
- A soot puff from delayed ignition. Gas builds for a second or two before it lights, then ignites with a thump that pushes soot and smoke out of the burner compartment. Dirty burners, a weak igniter or wrong gas pressure sit behind it.
- Flue gases spilling from a blocked vent. A bird nest or collapsed liner in a chimney, or a snow-packed sidewall termination, sends combustion gases back into the house. On an older chimney-vented furnace the spillage shows at the draft hood, and it carries carbon monoxide.
On rural lots that still heat with oil, in parts of Caledon, Kilbride and Flamborough, there is a sixth source: a puffback. Unburnt oil that collected in the combustion chamber ignites all at once and blows soot through the burner and the ducts. It needs an oil burner technician and usually a cleaning company.
Smoke, haze or water vapour: how to tell them apart
Real smoke has colour and a smell, and it lingers. A faint haze with a dusty smell on the first cold evening of fall is burn-off, and it should be gone in under half an hour. A sharp plastic smell without visible smoke points to wiring or a motor, covered in why a furnace smells like burning plastic.
The white plume outside is not smoke at all. A condensing furnace exhausts cool, wet flue gas through a plastic pipe in the side wall, and on a cold day the water vapour turns to a visible cloud that vanishes a metre or two from the house. That is normal operation; see white smoke from a furnace exhaust pipe for the cases where it is not.
Why restarting the furnace to test it is a mistake
A stalled motor that is powered again gets hotter than it did the first time. A short that tripped the breaker once is still there when you reset it. Delayed ignition gets worse with each attempt as more soot coats the burners, and a blocked vent keeps spilling for as long as the burners run. Every one of the five causes escalates with another cycle, which is why the rule is inspection first.
What a technician checks before the furnace runs again
- The blower motor, capacitor and wiring, for heat damage and a seized shaft.
- The control board, transformer and low-voltage wiring, for scorch marks and shorts.
- The burners, igniter and gas pressure, to remove the cause of a delayed light-off.
- The heat exchanger, for soot and cracks.
- The vent or chimney from the furnace to the outside termination, for blockage, separation and proper draft.
- Carbon monoxide in the room air and in the flue gas once the furnace is firing.
Wiring faults upstream of the furnace switch go to a licensed electrician under ESA rules; everything on the gas side has to be done by a TSSA-licensed gas technician. A smoke call with ZK Mechanical starts with a diagnostic visit and a written price before any part is replaced. Soot on walls and ducts is a cleaning job that your home insurer may want photographed first.
Once the fire department has cleared the house, or if the smoke stopped as soon as the power went off, call ZK Mechanical's emergency HVAC service at (647) 801-1252 any hour, or request a visit in writing. More urgent heating questions are answered in the emergency answers hub.
